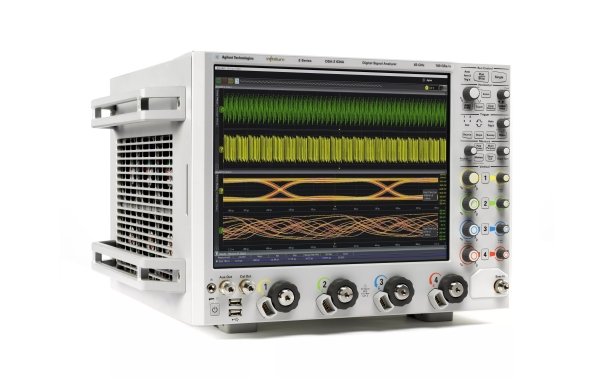

Высокопроизводительный осциллограф Infiniium DSAZ634A, 63 ГГц
Описание
Современные технологии связи позволяют передавать данные со скоростью от десятков до сотен гигабит в секунду, поэтому используемые для их тестирования осциллографы должны иметь широкую полосу пропускания, низкий уровень собственных шумов и высокую скорость обработки данных. Обеспечение таких характеристик и было главной целью при создании осциллографов серии Z. Высокопроизводительный осциллограф Infiniium DSAZ204A серии Z имеет аналоговую полосу пропускания в режиме реального времени 20 ГГц (с возможностью расширения до 63 ГГц) и обеспечивает самый низкий в отрасли уровень собственных шумов и джиттера. Оборудуйте свою лабораторию осциллографами серии Z — и вы всегда будете на переднем крае развития технологий.
Ключевые возможности и технические характеристики
Самый быстрый в мире осциллограф реального времени
- Полоса пропускания: 63 ГГц при использовании 2 каналов, 33 ГГц при использовании 4 каналов
- Частота дискретизации: 160 Гвыб./с при использовании 2 каналов, 80 Гвыб./с при использовании 4 каналов
- Самый большой в отрасли объем памяти: 100 М точек на канал в стандартной комплектации с возможностью расширения до 2 Г точек на канал
Высочайшая точность измерений в режиме реального времени
- Самая широкая в отрасли аналоговая полоса пропускания: до 63 ГГц
- Самый низкий в отрасли уровень собственных шумов
- Самый низкий пороговый уровень измерения джиттера
Первая в отрасли система осциллографических пробников с полосой до 30 ГГц
- Возможность учета S-параметров усилителя пробника обеспечивает точную коррекцию частотной характеристики каждого усилителя пробника
- Первые в отрасли пробники с возможностью расширения полосы пропускания
- Программа PrecisionProbe позволяет быстро измерять характеристики любого входного канала осциллографа
Самый полный в отрасли набор прикладных измерительных программ
- Самый широкий набор инструментов для запуска, измерения джиттера, анализа сигналов и протоколов (включая PrecisionProbe)
- Готовый комплект программ для испытаний на соответствие требованиям стандартов, основанный на опыте специалистов компании, участвующих в работе комитетов по стандартизации
- Поддержка перспективных технологий, включая SAS 6G, SATA 6G, SAS 12G, GDDR5, PCIe gen 3, DisplayPort 1.2, QPI, 10GBaseKR и др.
- Программное обеспечение MATLAB®, приобретаемое непосредственно в компании Keysight, позволяет создавать собственные методики измерений и анализа, настраиваемые фильтры и прикладные измерительные программы
Опции и аксессуары
| DSOZ000-01G | Memory upgrade 1G |
| DSOZ000-02G | Memory upgrade 2G/CH |
| DSOZ000-100 | Memory upgrade 100M/CH |
| DSOZ000-200 | Memory upgrade 200M/CH |
| DSOZ000-500 | Memory upgrade 500M/CH |
| DSOZ000-800 | Standard Removable SSD drive for Z-Series - 500 GB |
| DSOZ000-801 | Upgrade - Removable SSD drive for Z-Series - 1TB |
| DSOZ000-A6J | ANSI Z540 Compliant Calibration |
| E2681A-1FP | EZJIT Jitter Analysis Software, fixed perpetual license |
| E2681A-1NL | EZJIT Jitter Analysis Software, node locked license |
| E2681A-1TP | EZJIT Jitter Analysis Software, transportable perpetual license |
| E2688A-1FP | Serial Data Analysis, fixed perpetual license |
| E2688A-1NL | Serial Data Analysis, node locked license |
| E2688A-1TP | Serial Data Analysis, transportable perpetual license |
| N2807B-A6J | ANSI Z540-1-1994 Calibration |
| N2809A-001 | PrecisionProbe for 90000X series oscilloscope |
| N2809A-002 | PrecisionProbe for 90000 series oscilloscope |
| N2809A-1FP | PrecisionProbe Software, fixed perpetual license |
| N2809A-1NL | PrecisionProbe Software, node locked license |
| N2809A-1TP | PrecisionProbe Software, transportable perpetual license |
| N5391A-1FP | I2C/SPI Protocol Decode with Triggering, fixed perpetual license |
| N5391A-1NL | I2C/SPI Protocol Decode with Triggering, node locked license |
| N5391A-1TP | I2C/SPI Protocol Decode with Triggering, transportable perpetual license |
| N5392B-1FP | Energy Efficient Ethernet Compliance Application, fixed perpetual license |
| N5392B-1NL | Energy Efficient Ethernet Compliance Application, node locked license |
| N5392B-1TP | Energy Efficient Ethernet Compliance Application, transportable perpetual license |
| N5392B-2FP | Energy Efficient Ethernet compliance application upgrade, fixed perpetual license |
| N5392B-2NL | Energy Efficient Ethernet compliance application upgrade, node locked license |
| N5392B-3FP | Ethernet compliance application only, fixed perpetual license |
| N5392B-3NL | Ethernet compliance application only, node locked license |
| N5392B-3TP | Ethernet compliance application only, transportable perpetual license |
| N5393D-1FP | PCIe Compliance Application for PCIe 1.0, 1.1, 2.0 and 3.0, fixed perpetual license |
| N5393D-1NL | PCIe compliance application for PCIe 1.0, 1.1, 2.0 and 3.0, node locked license |
| N5393D-1TP | PCIe compliance application for PCIe 1.0, 1.1, 2.0 and 3.0, transportable perpetual license |
| N5393D-2FP | PCIe Compliance Software (upgrade to 1.0, 1.1, 2.0 and 3.0), fixed perpetual license |
| N5393D-2NL | PCIe Compliance Software (upgrade to 1.0, 1.1, 2.0 and 3.0), node locked license |
| N5393D-3FP | PCIe compliance application for PCIe 1.0, 1.1 and 2.0, fixed perpetual license |
| N5393D-3NL | PCIe compliance application for PCIe 1.0, 1.1 and 2.0, node locked license |
| N5393D-3TP | PCIe compliance application for PCIe 1.0, 1.1and 2.0, transportable perpetual license |
| N5393D-4FP | PCIe 3.0 receiver test calibration, fixed perpetual license |
| N5393D-4NL | PCIe 3.0 receiver test calibration, node locked license |
| N5393D-4TP | PCIe 3.0 receiver test calibration, transportable perpetual license |
| N5393D-7FP | PCIe Switch Matrix control, fixed perpetual license |
| N5393D-7NL | PCIe Switch Matrix control, node locked license |
| N5393D-7TP | PCIe Switch Matrix control, transportable perpetual license |
| N5399C-1FP | HDMI 2.0 electrical performance validation and compliance test, fixed perpetual license |
| N5399C-1NL | HDMI 2.0 electrical performance validation and compliance test, node locked license |
| N5399C-1TP | HDMI 2.0 electrical performance validation and compliance test, transportable perpetual license |
| N5399C-2FP | Upgrade to HDMI 2.0 electrical performance validation and compliance test, fixed perpetual license |
| N5399C-2NL | Upgrade to HDMI 2.0 electrical performance validation and compliance test, node locked license |
| N5399C-3FP | HDMI 1.4 electrical performance validation and compliance test, fixed perpetual license |
| N5399C-3NL | HDMI 1.4 electrical performance validation and compliance test, node locked license |
| N5399C-3TP | HDMI 1.4 electrical performance validation and compliance test, transportable perpetual license |
| N5399C-7FP | HDMI Switch Matrix control, fixed perpetual license |
| N5399C-7NL | HDMI Switch Matrix control, node locked license |
| N5399C-7TP | HDMI Switch Matrix control, transportable perpetual license |
| N5400A-1FP | EZJIT+ jitter analysis software, fixed perpetual license |
| N5400A-1NL | EZJIT+ jitter analysis software, node locked license |
| N5400A-1TP | EZJIT+ jitter analysis software, transportable perpetual license |
| N5411B-1FP | SATA 6Gb/s compliance application, fixed perpetual license |
| N5411B-1NL | SATA 6Gb/s compliance application, node locked license |
| N5411B-1TP | SATA 6Gb/s compliance application, transportable perpetual license |
| N5411B-2FP | SATA 6Gb/s upgrade - requires the N5411A, fixed perpetual license |
| N5411B-2NL | SATA 6Gb/s upgrade - requires the N5411A, node locked license |
| N5412D-1FP | SAS-3 Compliance Test Application, fixed perpetual license |
| N5412D-1NL | SAS-3 Compliance Test Application, node locked license |
| N5412D-1TP | SAS-3 Compliance Test Application, transportable perpetual license |
| N5412D-2FP | Upgrade to SAS-3 Compliance Test Application, fixed perpetual license |
| N5412D-2NL | Upgrade to SAS-3 Compliance Test Application, node locked license |
| N5412D-3FP | SAS-2 Compliance Test Application, fixed perpetual license |
| N5412D-3NL | SAS-2 Compliance Test Application, node locked license |
| N5412D-3TP | SAS-2 Compliance Test Application, transportable perpetual license |
| N5413B-1FP | DDR2 and LPDDR2 Compliance Test Application, fixed perpetual license |
| N5413B-1NL | DDR2 and LPDDR2 Compliance Test Application, node locked license |
| N5413B-1TP | DDR2 and LPDDR2 Compliance Test Application, transportable perpetual license |
| N5413B-2FP | Upgrade to LPDDR2 Compliance Software, fixed perpetual license |
| N5413B-2NL | Upgrade to LPDDR2 Compliance Software, node locked license |
| N5413B-3FP | DDR2 and LPDDR2 Debug Tool, fixed perpetual license |
| N5413B-3NL | DDR2 and LPDDR2 Debug Tool, node locked license |
| N5413B-3TP | DDR2 and LPDDR2 Debug Tool, transportable perpetual license |
| N5414B-1FP | InfiniiScan Event Identification Software, fixed perpetual license |
| N5414B-1NL | InfiniiScan Event Identification Software, node locked license |
| N5414B-1TP | InfiniiScan Event Identification Software, transportable perpetual license |
| N5416A-1FP | USB 2.0 Compliance Software, fixed perpetual license |
| N5416A-1NL | USB 2.0 Compliance Software, node locked license |
| N5416A-1TP | USB 2.0 Compliance Software, transportable perpetual license |
| N5430A-1FP | User Defined Function, fixed perpetual license |
| N5430A-1NL | User Defined Function, node locked license |
| N5430A-1TP | User Defined Function, transportable perpetual license |
| N5431A-1FP | XAUI compliance application, fixed perpetual license |
| N5431A-1NL | XAUI compliance application, node locked license |
| N5431A-1TP | XAUI compliance application, transportable perpetual license |
| N5459B-1FP | DDR Compliance Software Bundle, fixed perpetual license |
| N5459B-1NL | DDR Compliance Software Bundle, node locked license |
| N5461A-1FP | Equalization Emulation software, fixed perpetual license |
| N5461A-1NL | Equalization Emulation software, node locked license |
| N5461A-1TP | Equalization Emulation software, transportable perpetual license |
| N5462A-1FP | RS-232/UART decode application, fixed perpetual license |
| N5462A-1NL | RS-232/UART decode application, node locked license |
| N5462A-1TP | RS-232/UART decode application, transportable perpetual license |
| N5463A-1FP | PCI-Express protocol, fixed perpetual license |
| N5463A-1NL | PCI-Express protocol, node locked license |
| N5463A-1TP | PCI-Express protocol, transportable perpetual license |
| N5464A-1FP | USB 2.0 Protocol Decode Software, fixed perpetual license |
| N5464A-1NL | USB 2.0 Protocol Decode Software, node locked license |
| N5464A-1TP | USB 2.0 Protocol Decode Software, fixed perpetual license |
| N5465A-1FP | InfiniiSim Advanced, fixed perpetual license |
| N5465A-1NL | InfiniiSim Advanced, node locked license |
| N5465A-1TP | InfiniiSim Advanced, transportable perpetual license |
| N5465A-2FP | InfiniiSim Basic to Advanced Upgrade, fixed perpetual license |
| N5465A-2NL | InfiniiSim Basic to Advanced Upgrade, node locked license |
| N5465A-3FP | InfiniiSim Basic, fixed perpetual license |
| N5465A-3NL | InfiniiSim Basic, node locked license |
| N5465A-3TP | InfiniiSim Basic, transportable perpetual license |
| N5467B-1FP | User Defined Application, fixed perpetual license |
| N5467B-1NL | User Defined Application, node locked license |
| N5467B-1TP | User Defined Application, transportable perpetual license |
| N5467B-7FP | UDA Switch Matrix Control, fixed perpetual license |
| N5467B-7NL | UDA Switch Matrix Control, node locked license |
| N5467B-7TP | UDA Switch Matrix Control, transportable perpetual license |
| N6460B-1FP | MHL 3.0 compliance test software, fixed perpetual license |
| N6460B-1NL | MHL 3.0 compliance test software, node locked license |
| N6460B-1TP | MHL 3.0 compliance test software, transportable perpetual license |
| N6460B-2FP | MHL 1.x/2.x upgrade to MHL 3.0 compliance test software, fixed perpetual license |
| N6460B-2NL | MHL 1.x/2.x upgrade to MHL 3.0 compliance test software, node locked license |
| N6460B-3FP | MHL 1.x/2.x compliance test, fixed perpetual license |
| N6460B-3NL | MHL 1.x/2.x compliance test software, node locked license |
| N6460B-3TP | MHL 1.x/2.x compliance test software, transportable perpetual license |
| N6462A-1FP | DDR4 and LPDDR4 compliance test software application, fixed perpetual license |
| N6462A-1NL | DDR4 and LPDDR4 compliance test software application, node locked license |
| N6462A-1TP | DDR4 and LPDDR4 compliance test software application, transportable perpetual license |
| N6462A-2FP | Upgrade to LPDDR4 compliance software, fixed perpetual license |
| N6462A-2TP | Upgrade to LPDDR4 compliance software, transportable perpetual license |
| N6462A-3FP | DDR4 Debug Tool, fixed perpetual license |
| N6462A-3NL | DDR4 Debug Tool, node locked license |
| N6462A-3TP | DDR4 Debug Tool, transportable perpetual license |
| N6463B-1FP | Thunderbolt compliance test software for Infiniium oscilloscopes, fixed perpetual license |
| N6463B-1NL | Thunderbolt compliance test software for Infiniium oscilloscopes, node locked license |
| N6463B-1TP | Thunderbolt compliance test software for Infiniium oscilloscopes, transportable perpetual license |
| N6465A-1FP | Compliance and validation software eMMC, fixed perpetual license |
| N6465A-1NL | Compliance and validation software eMMC, node locked license |
| N6465A-1TP | Compliance and validation software eMMC, transportable perpetual license |
| N6466A-1FP | MOST Compliance Application, fixed perpetual license |
| N6466A-1NL | MOST Compliance Application, node locked license |
| N6466A-1TP | MOST Compliance Application, transportable perpetual license |
| N6467A-1FP | BroadR-Reach compliance software, fixed perpetual license |
| N6467A-1NL | BroadR-Reach compliance software, node locked license |
| N6467A-1TP | BroadR-Reach compliance software, transportable perpetual license |
| N6468A-1FP | SFP+ compliance application, fixed perpetual license |
| N6468A-1NL | SFP+ compliance application, node locked license |
| N6468A-1TP | SFP+ compliance application, transportable perpetual license |
| N6468A-7FP | QSFP+ Switch Matrix, fixed perpetual license |
| N6468A-7NL | QSFP+ Switch Matrix, node locked license |
| N6468A-7TP | QSFP+ Switch Matrix, transportable perpetual license |
| N8801A-1FP | SATA/SAS protocol decode, fixed perpetual license |
| N8801A-1NL | SATA/SAS protocol decode, node locked license |
| N8801A-1TP | SATA/SAS protocol decode, transportable perpetual license |
| N8802A-1FP | MIPI D-PHY protocol decode, fixed perpetual license |
| N8802A-1NL | MIPI D-PHY protocol decode, node locked license |
| N8802A-1TP | MIPI D-PHY protocol decode, transportable perpetual license |
| N8803A-1FP | CAN/FlexRay Protocol Decode Software, fixed perpetual license |
| N8803A-1NL | CAN/FlexRay Protocol Decode Software, node locked license |
| N8803A-1TP | CAN/FlexRay Protocol Decode Software, transportable perpetual license |
| N8805A-1FP | USB 3.0 protocol decode, fixed perpetual license |
| N8805A-1NL | USB 3.0 protocol decode, node locked license |
| N8805A-1TP | USB 3.0 protocol decode, transportable perpetual license |
| N8806A-001 | MATLAB - Standard Oscilloscope Package, fixed perpetual license |
| N8806A-002 | User Defined Application, fixed perpetual license |
| N8806A-1FP | MATLAB and User Defined Function Bundle, fixed perpetual license |
| N8806A-1NL | MATLAB and User Defined Function Bundle, node locked license |
| N8807A-1FP | DigRF v4 protocol decode, fixed perpetual license |
| N8807A-1NL | DigRF v4 protocol decode, node locked license |
| N8807A-1TP | DigRF v4 protocol decode, transportable perpetual license |
| N8808A-1FP | UniPro Protocol Decode, fixed perpetual license |
| N8808A-1NL | UniPro Protocol Decode, node locked license |
| N8808A-1TP | UniPro Protocol Decode, transportable perpetual license |
| N8809A-1FP | LLI Protocol Decode, fixed perpetual license |
| N8809A-1NL | LLI Protocol Decode, node locked license |
| N8809A-1TP | LLI Protocol Decode, transportable perpetual license |
| N8812A-1FP | SVID Protocol Triggering and Decode, fixed perpetual license |
| N8812A-1NL | SVID Protocol Triggering and Decode, node locked license |
| N8812A-1TP | SVID Protocol Triggering and Decode, transportable perpetual license |
| N8814B-1FP | Ethernet KR compliance application, fixed perpetual license |
| N8814B-1NL | Ethernet KR compliance application, node locked license |
| N8814B-1TP | Ethernet KR compliance application, transportable perpetual license |
| N8814B-7FP | Ethernet KR Switch Matrix control, fixed perpetual license |
| N8814B-7NL | Ethernet KR Switch Matrix control, node locked license |
| N8814B-7TP | Ethernet KR Switch Matrix control, transportable perpetual license |
| N8815A-1FP | Ethernet 64/66 Protocol and Decode Software, fixed perpetual license |
| N8815A-1NL | Ethernet 64/66 Protocol and Decode Software, node locked license |
| N8815A-1TP | Ethernet 64/66 Protocol and Decode Software, transportable perpetual license |
| N8816A-1FP | PCIe Protocol Decode Software (1.0, 1.1, 2.0, 3.0), fixed perpetual license |
| N8816A-1NL | PCIe Protocol Decode Software (1.0, 1.1, 2.0, 3.0), node locked license |
| N8816A-1TP | PCIe Protocol Decode Software (1.0, 1.1, 2.0, 3.0), transportable perpetual license |
| N8817A-1FP | JTAG Protocol Decode, fixed perpetual license |
| N8817A-1NL | JTAG Protocol Decode, node locked license |
| N8817A-1TP | JTAG Protocol Decode, transportable perpetual license |
| N8818A-1FP | Universal Flash Storage (UFS) Protocol decode, fixed perpetual license |
| N8818A-1NL | Universal Flash Storage (UFS) Protocol decode, node locked license |
| N8818A-1TP | Universal Flash Storage (UFS) Protocol decode, transportable perpetual license |
| N8819A-1FP | USB 3.0 SuperSpeed Inter-Chip (SSIC) protocol decode, fixed perpetual license |
| N8819A-1NL | USB 3.0 SuperSpeed Inter-Chip (SSIC) protocol decode, node locked license |
| N8819A-1TP | USB 3.0 SuperSpeed Inter-Chip (SSIC) protocol decode, transportable perpetual license |
| N8820A-1FP | MIPI CSI-3 (M-PHY) protocol decode, fixed perpetual license |
| N8820A-1NL | MIPI CSI-3 (M-PHY) protocol decode, node locked license |
| N8820A-1TP | MIPI CSI-3 (M-PHY) protocol decode, transportable license |
| N8822A-1FP |
MultiScope App for Infiniium, fixed perpetual license
|
| N8822A-1NL | MultiScope App for Infiniium, fixed perpetual license |
| N8823A-1FP | EZJIT Complete vertical noise analysis software, fixed perpetual license |
| N8823A-1NL | EZJIT Complete vertical noise analysis software, node locked license |
| N8823A-1TP | EZJIT Complete vertical noise analysis software, transportable perpetual license |
| N8824A-1FP | MIPI RFFE Protocol decode , fixed perpetual license |
| N8824A-1NL | MIPI RFFE Protocol decode , node locked license |
| N8824A-1TP | MIPI RFFE Protocol decode , transportable perpetual license |
| N8828A-1FP | 40GBASE-CR4 and 100GBASE-CR10 compliance application, fixed perpetual license |
| N8828A-1TP | 40GBASE-CR4 and 100GBASE-CR10 compliance application, transportable perpetual license |
| N8828A-7FP | 40GBASE-CR4 and 100GBASE-CR10 switch matrix, fixed perpetual license |
| N8828A-7TP | 40GBASE-CR4 and 100GBASE-CR10 switch matrix, transportable perpetual license |
| N8829A-1FP | 100GBASE-KR4 compliance application, fixed perpetual license |
| N8829A-1TP | 100GBASE-KR4 compliance application, transportable perpetual license |
| N8829A-7FP | 100GBASE-KR4 switch matrix, fixed perpetual license |
| N8829A-7TP | 100GBASE-KR4 switch matrix, transportable perpetual license |
| N8830A-1FP | 100GBASE-CR4 compliance application, fixed perpetual license |
| N8830A-1TP | 100GBASE-CR4 compliance application, transportable perpetual license |
| N8830A-7FP | 100GBASE-CR4 switch matrix, fixed perpetual license |
| N8830A-7TP | 100GBASE-CR4 switch matrix, transportable perpetual license |
| U7231B-1FP | DDR3 and LPDDR3 Compliance Software, fixed perpetual license |
| U7231B-1NL | DDR3 and LPDDR3 Compliance Software, node locked license |
| U7231B-1TP | DDR3 and LPDDR3 Compliance Software, transportable perpetual license |
| U7231B-2FP | Upgrade to DDR3 and LPDDR3 Compliance Software, fixed perpetual license |
| U7231B-2NL | Upgrade to DDR3 and LPDDR3 Compliance Software, node locked license |
| U7231B-3FP | DDR3 and LPDDR3 Debug Tool, fixed perpetual license |
| U7231B-3NL | DDR3 and LPDDR3 Debug Tool, node locked license |
| U7231B-3TP | DDR3 and LPDDR3 Debug Tool, transportable perpetual license |
| U7231B-7FP | LPDDR3 switch matrix, fixed perpetual license |
| U7231B-7TP | LPDDR3 switch matrix, transportable perpetual license |
| U7231B-SKT | Kit - Shipping |
| U7232C-1FP | DisplayPort compliance test application, fixed perpetual license |
| U7232C-1NL | DisplayPort compliance test application, node locked license |
| U7232C-1TP | DisplayPort compliance test application, transportable perpetual license |
| U7232C-2NL | DisplayPort compliance test application upgrade, node locked license |
| U7232C-7FP | DisplayPort Switch Matrix control, fixed perpetual license |
| U7232C-7NL | DisplayPort Switch Matrix control, node locked license |
| U7232C-7TP | DisplayPort Switch Matrix control, transportable perpetual license |
| U7233A-1FP | DDR and LPDDR compliance test application , fixed perpetual license |
| U7233A-1NL | DDR and LPDDR compliance test application , node locked license |
| U7233A-1TP | DDR and LPDDR compliance test application , transportable perpetual license |
| U7236A-1FP | 10GBASE-T Compliance Software, fixed perpetual license |
| U7236A-1NL | 10GBASE-T Compliance Software, node locked license |
| U7236A-1TP | 10GBASE-T Compliance Software, transportable perpetual license |
| U7236A-7FP | 10GBASE-T switch matrix, fixed perpetual license |
| U7236A-7NL | 10GBASE-T switch matrix, node locked license |
| U7236A-7TP | 10GBASE-T switch matrix, transportable perpetual license |
| U7238C-1FP | MIPI D-PHY compliance application, fixed perpetual license |
| U7238C-1NL | MIPI D-PHY compliance application, node locked license |
| U7238C-1TP | MIPI D-PHY compliance application, transportable perpetual license |
| U7238C-7FP | MIPI D-PHY Switch Matrix control, fixed perpetual license |
| U7238C-7NL | MIPI D-PHY Switch Matrix control, node locked license |
| U7238C-7TP | MIPI D-PHY Switch Matrix control, transportable perpetual license |
| U7243B-1FP | USB 3.1 10 Gbps compliance only software, fixed perpetual license |
| U7243B-1NL | USB 3.1 10 Gbps compliance only software, node locked license |
| U7243B-1TP | USB 3.1 10 Gbps compliance only software, transportable perpetual license |
| U7243B-2FP | USB 3.1 5 Gbps Upgrade to 10 Gbps, fixed perpetual license |
| U7243B-2NL | USB 3.1 5 Gbps Upgrade to 10 Gbps, node locked license |
| U7243B-3FP | USB 3.1 5 Gbps compliance software, fixed perpetual license |
| U7243B-3NL | USB 3.1 5 Gbps compliance software, node locked license |
| U7243B-3TP | USB 3.1 5 Gbps compliance software, transportable perpetual license |
| U7245A-1FP | GDDR5 Compliance Test Application, fixed perpetual license |
| U7245A-1NL | GDDR5 Compliance Test Application, node locked license |
| U7245A-1TP | GDDR5 Compliance Test Application, transportable perpetual license |
| U7246A-1FP | SD UHS1 Compliance Test Application , fixed perpetual license |
| U7246A-1NL | SD UHS1 Compliance Test Application , node locked license |
| U7246A-1TP | SD UHS1 Compliance Test Application , transportable perpetual license |
| U7248A-1FP | USB High Speed Inter-Chip Test Application Software, fixed perpetual license |
| U7248A-1NL | USB High Speed Inter-Chip Test Application Software, node locked license |
| U7248A-1TP | USB High Speed Inter-Chip Test Application Software, transportable perpetual license |
| U7249C-1FP | MIPI M-PHY compliance application, fixed perpetual license |
| U7249C-1NL | MIPI M-PHY compliance application, node locked license |
| U7249C-1TP | MIPI M-PHY compliance application, transportable perpetual license |
| U7249C-7FP | MIPI M-PHY Switch Matrix control, fixed perpetual license |
| U7249C-7NL | MIPI M-PHY Switch Matrix control, node locked license |
| U7249C-7TP | MIPI M-PHY Switch Matrix control, transportable perpetual license |
