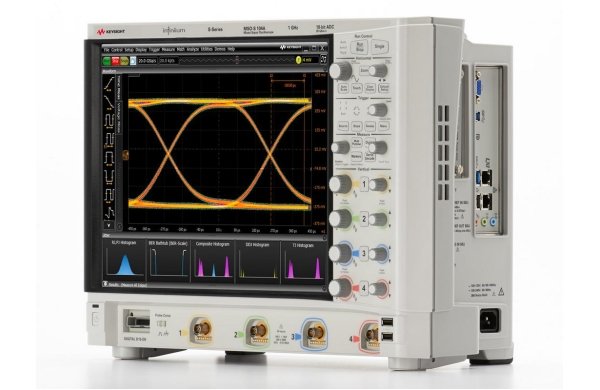

Осциллограф DSOS804A высокого разрешения, 8 ГГц, 4 аналоговых канала
Описание
Осциллографы высокого разрешения Infiniium серии S построены на основе инновационной технологии, предназначенной для выполнения высокоточных осциллографических измерений. Новый 10-разрядный аналого-цифровой преобразователь (АЦП), малошумящие входные каскады, корректирующие фильтры, аппаратная поддержка коэффициента вертикального отклонения от 2 мВ/дел. и прецизионный опорный генератор обеспечивают высочайшую достоверность измерений. Усовершенствованная архитектура осциллографов серии S и широкие функциональные возможности позволяют использовать эти приборы для решения самых разнообразных задач тестирования.
Ключевые возможности и технические характеристики
Лучшие в отрасли показатели по обеспечению целостности сигналов
- Полоса пропускания 8 ГГц с плоской частотной характеристикой для обеспечения точности воспроизведения сигналов
- Максимальная частота дискретизации: 20 Гвыб./с
- 10-разрядный аналого-цифровой преобразователь для обеспечения высокого разрешения по вертикали
- Малошумящие входные каскады с эффективным числом разрядов (ENOB) равным 6,4
Самая современная аппаратная платформа
- Емкостной сенсорный дисплей с диагональю 15 дюймов (38,1 см) с поддержкой технологии мультитач (multi-touch — множественное касание)
- Материнская плата на основе процессора Intel i5 с объемом оперативной памяти 8 Гбайт обеспечивает более быструю обработку данных
- Твердотельный жесткий диск в стандартной комплектации обеспечивает более высокую скорость загрузки и более стабильную работу системы
- Интерфейсы USB 3.0 и Ethernet обеспечивают скорость передачи данных до 200 Мбайт/с
Широкие функциональные возможности
- Возможность расширения полосы пропускания
- Глубина памяти в стандартной комплектации 50 Мточек на канал позволяет захватывать длинные сигналы
- Широкий набор опций для декодирования протоколов передачи данных, тестирования на соответствие требованиям стандартов и анализа сигналов
- Поддержка самых разнообразных типов пробников: пробников напряжения и токовых пробников, дифференциальных и несимметричных пробников, активных и пассивных пробников
