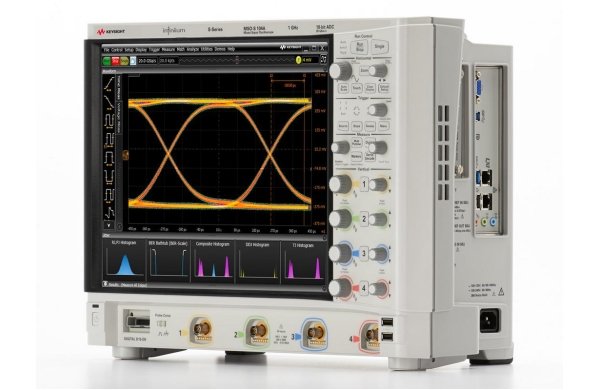

Осциллограф DSOS204A высокого разрешения, 2 ГГц, 4 аналоговых канала
Описание
Осциллографы высокого разрешения Infiniium серии S построены на основе инновационной технологии, предназначенной для выполнения высокоточных осциллографических измерений. Новый 10-разрядный аналого-цифровой преобразователь (АЦП), малошумящие входные каскады, корректирующие фильтры, аппаратная поддержка коэффициента вертикального отклонения от 2 мВ/дел. и прецизионный опорный генератор обеспечивают высочайшую достоверность измерений. Усовершенствованная архитектура осциллографов серии S и широкие функциональные возможности позволяют использовать эти приборы для решения самых разнообразных задач тестирования.
Ключевые возможности и технические характеристики
Лучшие в отрасли показатели по обеспечению целостности сигналов
- Полоса пропускания 2 ГГц с плоской частотной характеристикой для обеспечения точности воспроизведения сигналов
- Максимальная частота дискретизации: 20 Гвыб./с
- 10-разрядный аналого-цифровой преобразователь для обеспечения высокого разрешения по вертикали
- Малошумящие входные каскады с эффективным числом разрядов (ENOB) равным 7,5
Самая современная аппаратная платформа
- Емкостной сенсорный дисплей с диагональю 15 дюймов (38,1 см) с поддержкой технологии мультитач (multi-touch — множественное касание)
- Материнская плата на основе процессора Intel i5 с объемом оперативной памяти 8 Гбайт обеспечивает более быструю обработку данных
- Твердотельный жесткий диск в стандартной комплектации обеспечивает более высокую скорость загрузки и более стабильную работу системы
- Интерфейсы USB 3.0 и Ethernet обеспечивают скорость передачи данных до 200 Мбайт/с
Широкие функциональные возможности
- Возможность расширения полосы пропускания
- Глубина памяти в стандартной комплектации 50 Мточек на канал позволяет захватывать длинные сигналы
- Широкий набор опций для декодирования протоколов передачи данных, тестирования на соответствие требованиям стандартов и анализа сигналов
- Поддержка самых разнообразных типов пробников: пробников напряжения и токовых пробников, дифференциальных и несимметричных пробников, активных и пассивных пробников
Опции и аксессуары
| DSOS000-100 | Memory - 100Mpts/ch memory installed |
| DSOS000-1A7 | Calibration + Uncertainties + Guardbanding |
| DSOS000-200 | Memory - 200Mpts/ch memory installed |
| DSOS000-400 | Memory - 400Mpts/ch memory installed |
| DSOS000-821 | Precision BNC to SMA adapters (qty 2) |
| DSOS000-A6J | ANSI Z540 Compliant Calibration |
| DSOS000-AMG | Calibration + Uncertainties + Guardbanding (Accredited) |
| DSOS000-DSA | DSA Software Bundle, fixed perpetual license |
| E2681A |
Программа EZJIT Jitter Analysis для анализа джиттера
|
| E2681B-1FP | EZJIT Jitter Analysis Software, fixed perpetual license |
| E2681B-1NL | EZJIT Jitter Analysis Software, node locked license |
| E2681B-1TP | EZJIT Jitter Analysis Software, transportable perpetual license |
| N2808A |
PrecisionProbe Software for 9000A and 9000 H-Series
|
| N2808A-1FP | PrecisionProbe, fixed perpetual license |
| N2808A-1NL | PrecisionProbe, node locked license |
| N2808A-1TP | PrecisionProbe, transportable perpetual license |
| N2902B | Rackmount Kit - 9000 and S Series Oscilloscope |
| N5384A |
Программа анализа высокоскоростных последовательных потоков данных
|
| N5384A-1FP | High-speed SDA and clock recovery, fixed perpetual license |
| N5384A-1NL | High-speed SDA and clock recovery, node locked license |
| N5384A-1TP | High-speed SDA and clock recovery, transportable perpetual license |
| N5391B |
Запуск по протоколу и декодирование данных шин I²C и SPI для осциллографов серии Infiniium 9000
|
| N5391B-1FP | I2C/SPI Protocol Decode with Triggering, fixed perpetual license |
| N5391B-1NL | I2C/SPI Protocol Decode with Triggering, node locked license |
| N5391B-1TP | I2C/SPI Protocol Decode with Triggering, transportable perpetual license |
| N5392B |
Ethernet 10/100/1G Compliance Software with Energy Efficient Ethernet
|
| N5392C-1FP | Ethernet compliance with Energy Efficient Ethernet, fixed perpetual license |
| N5392C-1NL | Ethernet compliance with Energy Efficient Ethernet, node locked license |
| N5392C-1TP | Ethernet compliance with Energy Efficient Ethernet, fixed transportable license |
| N5392C-2FP | Ethernet compliance application with Energy Efficient Ethernet upgrade, fixed perpetual license |
| N5392C-2NL | Ethernet compliance application with Energy Efficient Ethernet upgrade, node locked license |
| N5392C-3FP | Ethernet compliance application only, fixed perpetual license |
| N5392C-3NL | Ethernet compliance application only, node locked license |
| N5392C-3TP | Ethernet compliance application only, transportable perpetual license |
| N5393E-3FP | PCIe compliance application for PCIe 1.0, 1.1 and 2.0, fixed perpetual license |
| N5393E-3NL | PCIe compliance application for PCIe 1.0, 1.1 and 2.0, node locked license |
| N5393E-3TP | PCIe compliance application for PCIe 1.0, 1.1 and 2.0, transportable perpetual license |
| N5393E-7FP | PCIe Switch Matrix control, fixed perpetual license |
| N5393E-7NL | PCIe Switch Matrix control, node locked license |
| N5393E-7TP | PCIe Switch Matrix control, transportable perpetual license |
| N5397A |
Динамический пробник для отладки ПЛИС компании Xilinx с помощью осциллографов серии Infiniium
|
| N5397A-1FP | Infiniium FPGA dynamic probe for Xilinx, fixed perpetual license |
| N5397A-1NL | Infiniium FPGA dynamic probe for Xilinx, node locked license |
| N5397A-1TP | Infiniium FPGA dynamic probe for Xilinx, transportable perpetual license |
| N5399C |
HDMI Electrical Performance Validation and Compliance Software
|
| N5399D-3FP | HDMI 1.4 validation and compliance test, fixed perpetual license |
| N5399D-3NL | HDMI 1.4 validation and compliance test, node locked license |
| N5399D-3TP | HDMI 1.4 electrical performance validation and compliance test, transportable perpetual license |
| N5399D-7FP | HDMI Switch Matrix control, fixed perpetual license |
| N5399D-7NL | HDMI Switch Matrix control, node locked license |
| N5399D-7TP | HDMI Switch Matrix control, transportable perpetual license |
| N5400A |
Программа EZJIT Jitter Analysis для анализа джиттера
|
| N5400B-1FP | EZJIT+ Jitter Analysis SW for Infiniium 9000 and S series Oscilloscopes, fixed perpetual license |
| N5400B-1NL | EZJIT+ Jitter Analysis SW for Infiniium 9000 and S series Oscilloscopes, node locked license |
| N5400B-1TP | EZJIT+ Jitter Analysis SW for Infiniium 9000 and S series Oscilloscopes, transportable perpetual license |
| N5413B |
DDR2 and LPDDR2 Compliance Test Application for Infiniium 9000 and 90000 Series Oscilloscopes
|
| N5413C-1FP | DDR2 and LPDDR2 Compliance Test Application, fixed perpetual license |
| N5413C-1NL | DDR2 and LPDDR2 Compliance Test Application, node locked license |
| N5413C-1TP | DDR2 and LPDDR2 Compliance Test Application, transportable perpetual license |
| N5413C-2FP | Upgrade for LPDDR2 Compliance Test Application, fixed perpetual license |
| N5413C-2NL | Upgrade for LPDDR2 Compliance Test Application, node locked license |
| N5413C-3FP | DDR2 and LPDDR2 Debug Tool, fixed perpetual license |
| N5413C-3NL | DDR2 and LPDDR2 Debug Tool, node locked license |
| N5413C-3TP | DDR2 and LPDDR2 Debug Tool, transportable perpetual license |
| N5415B |
Программное обеспечение идентификации событий InfiniiScan+ для осциллографов серии Infiniium 9000
|
| N5415B-1FP | InfiniiScan event identification software, fixed perpetual license |
| N5415B-1NL | InfiniiScan event identification software, node locked license |
| N5415B-1TP | InfiniiScan event identification software, transportable perpetual license |
| N5416A |
USB 2.0 Compliance Test Software
|
| N5416B-1FP | USB 2.0 Compliance Software, fixed perpetual license |
| N5416B-1NL | USB 2.0 Compliance Software, node locked license |
| N5416B-1TP | USB 2.0 Compliance Software, transportable perpetual license |
| N5430A |
Программа для определения пользователем функций осциллографов серии Infiniium
|
| N5430B-1FP | User defined function application, fixed perpetual license |
| N5430B-1NL | User defined function application, node locked license |
| N5430B-1TP | User defined function application, transportable perpetual license |
| N5431A |
XAUI Electrical Validation with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support
|
| N5431B-1FP | XAUI compliance application, fixed perpetual license |
| N5431B-1NL | XAUI compliance application, node locked license |
| N5431B-1TP | XAUI compliance application, transportable perpetual license |
| N5459C-1FP | DDR Compliance Software Bundle, fixed perpetual license |
| N5459C-1NL | DDR Compliance Software Bundle, node locked license |
| N5461A |
Программа коррекции последовательных данных для осциллографов серии Infiniium
|
| N5461B-1FP | Equalization Emulation software, fixed perpetual license |
| N5461B-1NL | Equalization Emulation software, node locked license |
| N5461B-1TP | Equalization Emulation software, transportable perpetual license |
| N5462B |
RS-232/UART Protocol Triggering and Decode
|
| N5462B-1FP | RS-232/UART triggering and decode application, fixed perpetual license |
| N5462B-1NL | RS-232/UART triggering and decode application, node locked license |
| N5462B-1TP | RS-232/UART triggering and decode application, transportable perpetual license |
| N5463A |
PCI Express Protocol Triggering and Decode
|
| N5463B-1FP | PCI-Express triggering and decode application, fixed perpetual license |
| N5463B-1NL | PCI-Express triggering and decode application, node locked license |
| N5463B-1TP | PCI-Express triggering and decode application, transportable perpetual license |
| N5464B |
Запуск по протоколу и декодирование данных шины USB для осциллографов серии Infiniium 9000
|
| N5464B-1FP | USB 2.0 Protocol Decode Software with Triggering, fixed perpetual license |
| N5464B-1NL | USB 2.0 Protocol Decode Software with Triggering, node locked license |
| N5464B-1TP | USB 2.0 Protocol Decode Software with Triggering, transportable perpetual license |
| N5465A |
Набор инструментов InfiniiSim для преобразования сигналов для осциллографов Infiniium
|
| N5465B-1FP | InfiniiSim Advanced Software, fixed perpetual license |
| N5465B-1NL | InfiniiSim Advanced Software, node locked license |
| N5465B-1TP | InfiniiSim Advanced Software, transportable perpetual license |
| N5465B-2FP | InfiniiSim Basic to Advanced Upgrade, fixed perpetual license |
| N5465B-2NL | InfiniiSim Basic to Advanced Upgrade, node locked license |
| N5465B-3FP | InfiniiSim Basic Software, fixed perpetual license |
| N5465B-3NL | InfiniiSim Basic Software, node locked license |
| N5465B-3TP | InfiniiSim Basic Software, transportable perpetual license |
| N5467C-1FP | User Defined Application, fixed perpetual license |
| N5467C-1NL | User Defined Application, node locked license |
| N5467C-1TP | User Defined Application, transportable perpetual license |
| N5467C-7FP | UDA Switch Matrix Control, fixed perpetual license |
| N5467C-7NL | UDA Switch Matrix Control, node locked license |
| N5467C-7TP | UDA Switch Matrix Control, transportable perpetual license |
| N6461A |
SD UHS-II card Compliance Test Software Application for Infiniium 90000 Series Oscilloscope
|
| N6462B-1FP | DDR4 and LPDDR4 compliance test software, fixed perpetual license |
| N6462B-1NL | DDR4 and LPDDR4 compliance test software, node locked license |
| N6462B-1TP | DDR4 and LPDDR4 compliance test software, transportable perpetual license |
| N6462B-2FP | Upgrade to LPDDR4 compliance software, fixed perpetual license |
| N6462B-2TP | Upgrade to LPDDR4 compliance software, transportable perpetual license |
| N6462B-3FP | DDR4 Debug Tool, fixed perpetual license |
| N6462B-3NL | DDR4 Debug Tool, node locked license |
| N6462B-3TP | DDR4 Debug Tool, transportable perpetual license |
| N6465A |
eMMC Compliance Application Test Software for Infiniium 9000 Series Oscilloscopes
|
| N6465B-1FP | Compliance software eMMC, fixed perpetual license |
| N6465B-1NL | Compliance software eMMC, node locked license |
| N6465B-1TP | Compliance software eMMC, transportable perpetual license |
| N6466A |
MOST Compliance Application Software
|
| N6466B-1FP | MOST Compliance Application, fixed perpetual license |
| N6466B-1NL | MOST Compliance Application, node locked license |
| N6466B-1TP | MOST Compliance Application, transportable perpetual license |
| N6467A |
BroadR-Reach Compliance Application
|
| N6467B-1FP | BroadR-Reach compliance software, fixed perpetual license |
| N6467B-1NL | BroadR-Reach compliance software, node locked license |
| N6467B-1TP | BroadR-Reach compliance software, transportable perpetual license |
| N8800B-1FP | I2C, SPI, RS-232 Protocol Decode Software with Triggering, fixed perpetual license |
| N8800B-1NL | I2C, SPI, RS-232 Protocol Decode Software with Triggering, node locked license |
| N8800B-1TP | I2C, SPI, RS-232 Protocol Decode Software with Triggering, transportable perpetual license |
| N8801A |
SATA Protocol Analysis and Decode for Infiniium 9000 and 90000 Series oscilloscopes
|
| N8801B-1FP | SATA/SAS protocol decode, fixed perpetual license |
| N8801B-1NL | SATA/SAS protocol decode, node locked license |
| N8801B-1TP | SATA/SAS protocol decode, transportable perpetual license |
| N8802B-1FP | MIPI D-PHY protocol decode, fixed perpetual license |
| N8802B-1NL | MIPI D-PHY protocol decode, node locked license |
| N8802B-1TP | MIPI D-PHY protocol decode, transportable perpetual license |
| N8803B |
CAN, LIN, and FlexRay Protocol Triggering and Decode
|
| N8803B-1FP | CAN, LIN, FlexRay triggering and decode application, fixed perpetual license |
| N8803B-1NL | CAN, LIN, FlexRay triggering and decode application, node locked license |
| N8803B-1TP | CAN, LIN, FlexRay triggering and decode application, transportable perpetual license |
| N8805A |
Запуск по протоколу и декодирование данных последовательной шины USB 3.0 для осциллографов Infiniium
|
| N8805B-1FP | USB 3.0 protocol decode, fixed perpetual license |
| N8805B-1NL | USB 3.0 protocol decode, node locked license |
| N8805B-1TP | USB 3.0 protocol decode, transportable perpetual license |
| N8806A |
User Defined Function for Editing and Execution for Infiniium Oscilloscopes
|
| N8807A |
MIPI DigRF v4 (M-PHY) Protocol Decode for Infiniium 9000 and 90000 Series oscilloscopes
|
| N8807B-1FP | DigRF v4 protocol decode, fixed perpetual license |
| N8807B-1NL | DigRF v4 protocol decode, node locked license |
| N8807B-1TP | DigRF v4 protocol decode, transportable perpetual license |
| N8808A |
MIPI UniPro (M-PHY) Protocol Decode for Infiniium 90000 Series oscilloscopes
|
| N8808B-1FP | UniPro protocol decode, fixed perpetual license |
| N8808B-1NL | UniPro protocol decode, node locked license |
| N8808B-1TP | UniPro protocol decode, transportable perpetual license |
| N8809A |
MIPI LLI (M-PHY) Protocol Decode for Infiniium 90000 Series Oscilloscopes
|
| N8809B-1FP | LLI protocol decode, fixed perpetual license |
| N8809B-1NL | LLI protocol decode, node locked license |
| N8809B-1TP | LLI protocol decode, transportable perpetual license |
| N8812A |
SVID Protocol Triggering and Decode for Infiniium Series Oscilloscopes
|
| N8812B-1FP | SVID Protocol Triggering and Decode, fixed perpetual license |
| N8812B-1NL | SVID Protocol Triggering and Decode, node locked license |
| N8812B-1TP | SVID Protocol Triggering and Decode, transportable perpetual license |
| N8817A |
JTAG (IEEE 1149.1) JTAG Protocol Decode for Infiniium Oscilloscopes
|
| N8817B-1FP | JTAG Protocol Decode for Infiniium 9K/90K scopes, fixed perpetual license |
| N8817B-1NL | JTAG Protocol Decode for Infiniium 9K/90K scopes, node locked license |
| N8817B-1TP | JTAG Protocol Decode for Infiniium 9K/90K scopes, transportable perpetual license |
| N8818B-1FP | Universal Flash Storage (UFS) protocol decode, fixed perpetual license |
| N8818B-1NL | Universal Flash Storage (UFS) protocol decode, node locked license |
| N8818B-1TP | Universal Flash Storage (UFS) protocol decode, transportable perpetual license |
| N8819A |
SSIC (USB 3.0) Protocol Decode for Infiniium 90000 Series Oscilloscopes
|
| N8819B-1FP | USB 3.0 SuperSpeed Inter-Chip (SSIC) protocol decode, fixed perpetual license |
| N8819B-1NL | USB 3.0 SuperSpeed Inter-Chip (SSIC) protocol decode, node locked license |
| N8819B-1TP | USB 3.0 SuperSpeed Inter-Chip (SSIC) protocol decode, transportable perpetual license |
| N8820A |
MIPI CSI-3 Protocol Decode for Infiniium 90000 Series Oscilloscopes
|
| N8820B-1FP | MIPI CSI-3 (M-PHY) protocol decode, fixed perpetual license |
| N8820B-1NL | MIPI CSI-3 (M-PHY) protocol decode, node locked license |
| N8820B-1TP | MIPI CSI-3 (M-PHY) protocol decode, transportable perpetual license |
| N8823A |
EZJIT Complete
|
| N8823B-1FP | EZJIT Complete vertical noise analysis software, fixed perpetual license |
| N8823B-1NL | EZJIT Complete vertical noise analysis software, node locked license |
| N8823B-1TP | EZJIT Complete vertical noise analysis software, transportable perpetual license |
| N8824A |
MIPI RFFE Protocol Decode for Infiniium Oscilloscopes
|
| N8824B-1FP | MIPI RFFE protocol decode, fixed perpetual license |
| N8824B-1NL | MIPI RFFE protocol decode, node locked license |
| N8824B-1TP | MIPI RFFE protocol decode, transportable perpetual license |
| U1882B-1FP | Power measurement analysis software, fixed perpetual license |
| U1882B-1NL | Power measurement analysis software, node locked license |
| U1882B-1TP | Power measurement analysis software, transportable perpetual license |
| U7231B |
DDR3 and LPDDR3 Compliance Test Application for Infiniium Series Oscilloscopes
|
| U7231C-1FP | DDR3 and LPDDR3 Compliance Software, fixed perpetual license |
| U7231C-1NL | DDR3 and LPDDR3 Compliance Software, node locked license |
| U7231C-1TP | DDR3 and LPDDR3 compliance test software application, transportable perpetual license |
| U7231C-2FP | Upgrade to DDR3 and LPDDR3 Compliance Software, fixed perpetual license |
| U7231C-2NL | Upgrade to DDR3 and LPDDR3 Compliance Software, node locked license |
| U7231C-3FP | DDR3 and LPDDR3 Debug Tool, fixed perpetual license |
| U7231C-3NL | DDR3 and LPDDR3 Debug Tool, node locked license |
| U7231C-3TP | DDR3 and LPDDR3 Debug Tool, transportable perpetual license |
| U7233A |
DDR1 Compliance Test Application
|
| U7233B |
DDR1 Compliance Test Application
|
| U7233B-1FP | DDR and LPDDR compliance software, fixed perpetual license |
| U7233B-1NL | DDR and LPDDR compliance software, node locked license |
| U7233B-1TP | DDR and LPDDR compliance software, transportable perpetual license |
| U7236A |
10GBASE-T Ethernet Electrical Conformance Application
|
| U7236B-1FP | 10GBASE-T Compliance Software, fixed perpetual license |
| U7236B-1NL | 10GBASE-T Compliance Software, node locked license |
| U7236B-1TP | 10GBASE-T Compliance Software, transportable perpetual license |
| U7236B-7FP | 10GBASE-T switch matrix, fixed perpetual license |
| U7236B-7TP | 10GBASE-T switch matrix, transportable perpetual license |
| U7238D-1FP | MIPI D-PHY compliance application, fixed perpetual license |
| U7238D-1NL | MIPI D-PHY compliance application, node locked license |
| U7238D-1TP | MIPI D-PHY compliance application, transportable perpetual license |
| U7238D-7FP | MIPI D-PHY Switch Matrix control, fixed perpetual license |
| U7238D-7NL | MIPI D-PHY Switch Matrix control, node locked license |
| U7238D-7TP | MIPI D-PHY Switch Matrix control, transportable perpetual license |
| U7246A |
SD UHS-I Card Compliance Test Application for Infiniium Series Oscilloscopes
|
| U7246B-1FP | SD UHS1 compliance software, fixed perpetual license |
| U7246B-1NL | SD UHS1 compliance software, node locked license |
| U7246B-1TP | SD UHS1 compliance software, transportable perpetual license |
| U7248A |
High-Speed Inter-Chip (HSIC) Compliance Test Software
|
| U7248B-1FP | USB High Speed Inter-Chip validation software, fixed perpetual license |
| U7248B-1NL | USB High Speed Inter-Chip validation software, node locked license |
| U7248B-1TP | USB High Speed Inter-Chip validation software, transportable perpetual license |
| U7249D-1FP | MIPI M-PHY compliance application, fixed perpetual license |
| U7249D-1NL | MIPI M-PHY compliance application, node locked license |
| U7249D-1TP | MIPI M-PHY compliance application, transportable perpetual license |
| U7249D-7FP | MIPI M-PHY Switch Matrix control, fixed perpetual license |
| U7249D-7NL | MIPI M-PHY Switch Matrix control, node locked license |
| U7249D-7TP | MIPI M-PHY Switch Matrix control, transportable perpetual license |
| W2650A |
Oscilloscope Signal Analyzer (OSA) Software
|
|
MATLAB Data Analysis Software for Oscilloscopes
|
